Model: MES-62 / MES-80 / MES-100
merk: Bond
verpakkingen: karton
produktiviteit: 10000
vervoer: Ocean,Air
Plaats van herkomst: China
Certificaat: CE
GS-code: 95360000
Haven: Ningbo,Shanghai,Wenzhou
betaling Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF,EXW

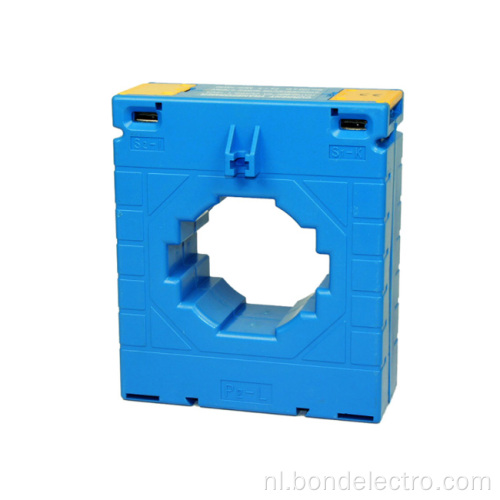

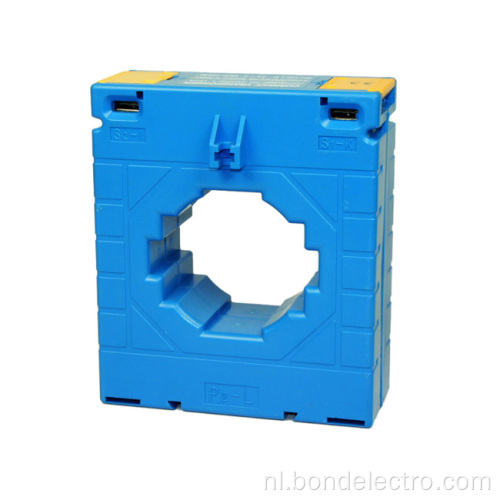

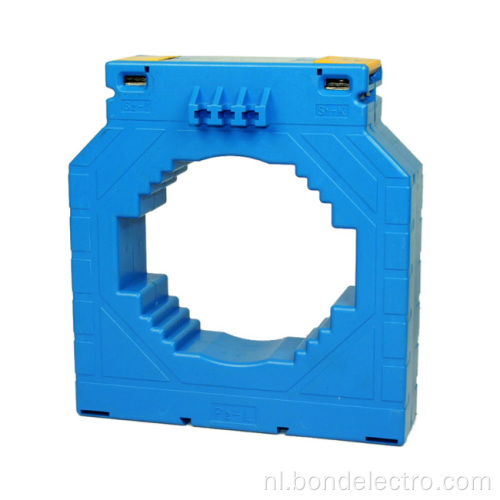

MES-serie Stroomtransformator met hoge nauwkeurigheid
De stroomtransformator van de MES-serie kan worden toegepast voor het testen, regelen, weergeven en registreren van de werking van de elektrische uitrusting, en om de apparatuur te beschermen tegen schade, in het wisselstroomcircuit met de nominale spanningswaarde onder 600V en de frequentie van 50-60Hz. De stroomtransformator kan ook worden toegepast om een complete set mijntransformatoren te vormen. MSQ Current Transformer wordt geproduceerd volgens de normen van IEC60044-1 GB1208-2006 .

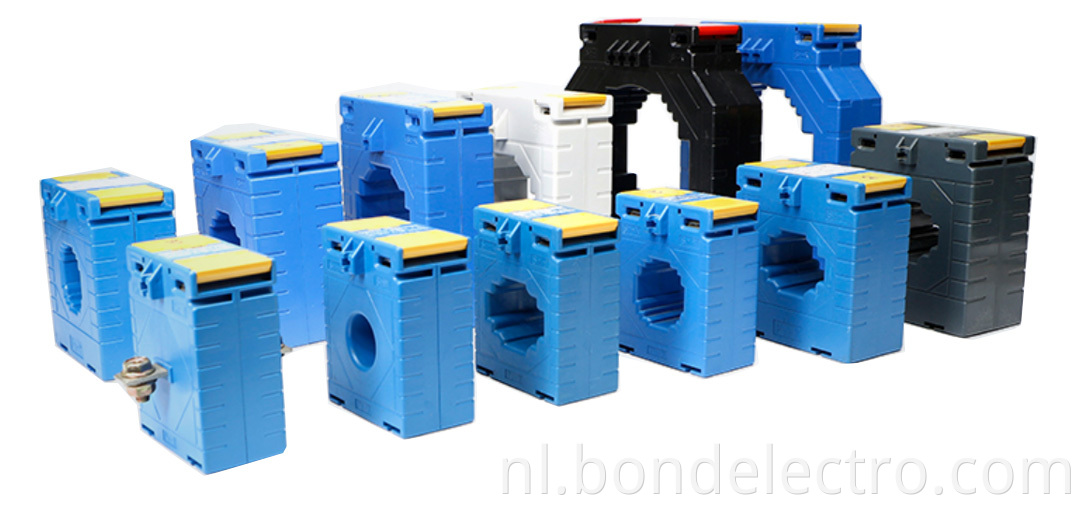

MES Current Transformer is een reeks compacte stroomtransformatoren in kunststof behuizing. Het volume is veel kleiner dan het algemene model. Zijn integrale scharnierende afdekplaat en montage op DIN-rail zorgen ervoor dat de MES CT voldoet aan de vereisten in panelen met beperkte ruimte .
F eet ures

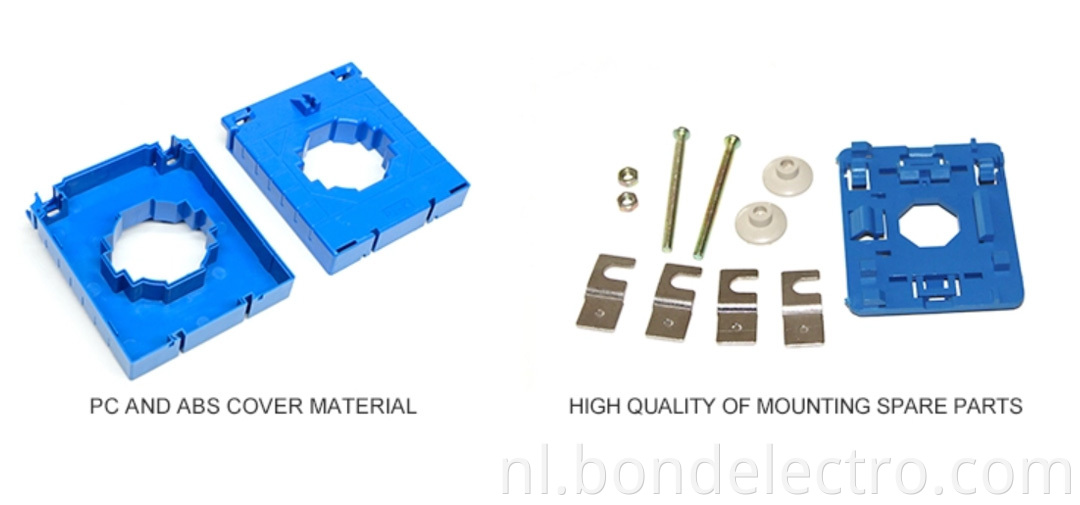

Drie ingebouwde bevestigingsmethoden: paneel/din-rail/rail
Ingebouwde scharnierende klemmenafdekking
Compact ontwerp
Primaire stroom van 5A tot 3000A
Rated frequency | 50/60Hz |
Rated test voltage | 3Kv AC (1 min) |
Rated short-time thermal current (Ith) | 60In |
60In Rated dynamic current (Idyn) | 2.5Ith |
Rated voltage (Um) | 0.72Kv AC |
Continuous overload (Id) | 1.2In |
Operating temperature | .-10 degree to 50 degree |
Housing self-extinguishing class | VO |
Safety factor | FS 5 |
Secondary current | 5A/1A |
Standaard
IEC60044-1 GB1208-2006
Type | Ratio(A) | Burden(VA) | |
Class:0.5 | Class:1.0 | ||
MES-62/20 | 30/5 | - | 2.5(4T) |
MES-62/20 | 40/5 | - | 2.5(3T) |
MES-62/20 | 55/5 | - | 2.5(3T) |
MES-62/20 | 60/5 | - | 2.5(2T) |
MES-62/20 | 75/5 | - | 1.5 |
MES-62/20 | 80/5 | - | 2.5 |
MES-62/20 | 100/5 | 1.5 | 2.5 |
MES-62/20 | 150/5 | 2.5 | 3.75 |
MES-62/20 | 200/5 | 3.75 | 5 |
MES-62/30 | 30/5 | - | 2.5(4T) |
MES-62/30 | 40/5 | - | 2.5(3T) |
MES-62/30 | 50/5 | - | 2.5(3T) |
MES-62/30 | 60/5 | - | 2.5(2T) |
MES-62/30 | 75/5 | - | 1.5 |
MES-62/30 | 100/5 | 1.5 | 2.5 |
MES-62/30 | 150/5 | 2.5 | 3.75 |
MES-62/30 | 200/5 | 3.75 | 5 |
MES-62/40 | 60/5 | - | 1.5(2T) |
MES-62/40 | 75/5 | - | 1.5(2T) |
MES-62/40 | 100/5 | - | 1.5 |
MES-62/40 | 150/5 | - | 2.5 |
MES-62/40 | 200/5 | 2.5 | 3.75 |
MES-62/40 | 250/5 | 2.5 | 3.75 |
MES-62/40 | 300/5 | 3.75 | 5 |
MES-62/B | 5/5 | 1.5 | 2.5 |
MES-62/B | 10/5 | 1.5 | 2.5 |
MES-62/B | 15/5 | 1.5 | 2.5 |
MES-62/B | 20/5 | 1.5 | 2.5 |
MES-62/B | 25/5 | 1.5 | 2.5 |
MES-62/B | 30/5 | 1.5 | 2.5 |
MES-62/B | 40/6 | 1.5 | 2.5 |
MES-62/B | 50/5 | 1.5 | 2.5 |
MES-62/B | 60/5 | 1.5 | 2.5 |
MES-62/B | 75/5 | 1.5 | 2.5 |
MES-62/B | 100/5 | 1.5 | 2.5 |
MES-62/B | 150/5 | 1.5 | 2.5 |
MES-80/30 | 30/5 | - | 2.5(4T) |
MES-80/30 | 50/5 | - | 2.5(2T) |
MES-80/30 | 60/5 | - | 2.5(2T) |
MES-80/30 | 75/5 | - | 1.5 |
MES-80/30 | 100/5 | - | 2.5 |
MES-80/30 | 150/5 | 2.5 | 3.75 |
MES-80/30 | 200/5 | 3.75 | 5 |
MES-80/40 | 100/5 | - | 2.5 |
MES-80/40 | 150/5 | 2.5 | 3.75 |
MES-80/40 | 200/5 | 3.75 | 5 |
MES-80/40 | 250/5 | 3.75 | 5 |
MES-80/40 | 300/5 | 5 | 5 |
MES-80/40 | 400/5 | 5 | 10 |
MES-80/40 | 500/5 | 5 | 10 |
MES-100/60 | 400/5 | 3.75 | 5 |
MES-100/60 | 500/5 | 5 | 10 |
MES-100/60 | 600/5 | 10 | 10 |
MES-100/60 | 750/5 | 10 | 15 |
MES-100/60 | 800/5 | 10 | 15 |
MES-100/60 | 1000/5 | 10 | 20 |
MES-100/60 | 1200/5 | 15 | 20 |
MES-100/60 | 1500/5 | 15 | 20 |
MES-100/60 | 1500/5 | 15 | 20 |
MES-100/60 | 400/5 | 3.75 | 5 |
MES-100/60 | 500/5 | 5 | 10 |
MES-100/60 | 600/5 | 10 | 10 |
MES-100/60 | 750/5 | 10 | 15 |
MES-100/60 | 800/5 | 10 | 15 |
MES-100/60 | 1000/5 | 10 | 20 |
MES-100/60 | 1200/5 | 15 | 20 |
MES-100/60 | 1500/5 | 15 | 20 |
MES-100/60 | 1500/5 | 15 | 20 |
