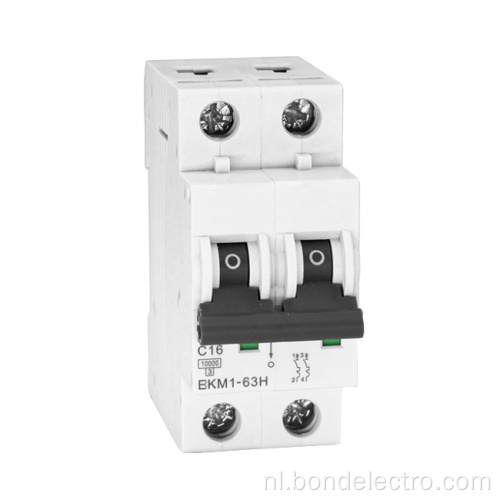

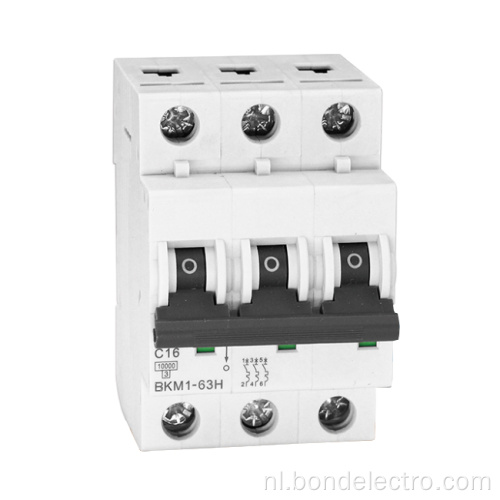

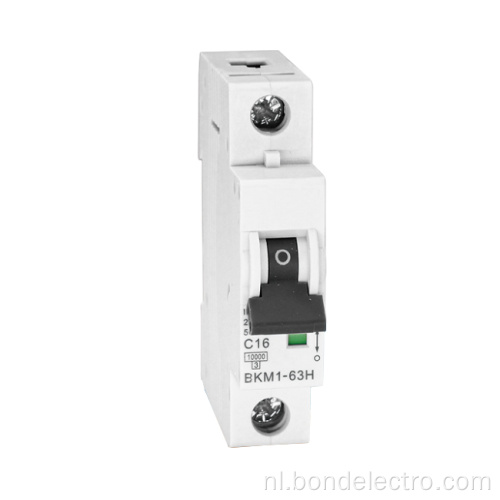

10KA breekcapaciteit mini-stroomonderbreker

  • $1
    ≥100
    Piece/Pieces
betaling Type:
L/C,T/TL/C,T/T
Incoterm:
FOB,CFR,CIF,EXWFOB,CFR,CIF,EXW
Min. orde:
240 Piece/Pieces
vervoer:
Ocean,Air
Haven:
Ningbo
Share:
  • Beschrijving
Overview
Productkenmerken

ModelBKM1-63H

merkBOND

BreekcapaciteitLage spanningsstroomonderbrekers

OperatieElektrisch type

SnelheidNormale type stroomonderbreker

Boog-exporting MediumLucht

InstallatieGemaakt

StructuurMCB

Polennummer3

TypeZekering

FunctieConventionele stroomonderbreker

certificaatISO9001-2000

Leveringscapaciteit en aanvullende infor...

verpakkingenKartons

produktiviteit100000

vervoerOcean,Air

Plaats van herkomstChina

Ondersteuning over500000

CertificaatCCC

GS-code8536200000

HavenNingbo

betaling TypeL/C,T/TL/C,T/T

IncotermFOB,CFR,CIF,EXWFOB,CFR,CIF,EXW

Verpakking & Levering
Verkoopeenheden:
Piece/Pieces
Pakkettype:
Kartons

BKM1-63H 10KA TUV/CE gecertificeerd 1/2/3/4P B/C/D curve 1-63A mini stroomonderbreker mcb (onderbreker)

                 Standard

              IEC/EN 60898-1

Electrical
features

Rated current in

A

1  2 3 4 6 10 16 20 25 32 40 50  63

Poles



1P,1P+N, 2P, 3P,3P+N, 4P

Rated voltage

V

230/400

Insulation voltage

V

500

Rated frequency

Hz

50/60

Rated breaking capacity

A

6000/10000

Rated impulse withstand voltage (1.2/50)

V

4000

Dielectric test voltage at and ind.Freq.for 1min

KV

2

Pollution degree



2

Thermal-magnetic release characteristic



B(3-5In) ,  C(5-10In) ,  D(10-20In)

Mechanical
features

Electrical life



8000

Mechanical life



20000

Contact position indicator



Yes

Protection degree



IP 20

Reference temperature of setting of thermal element

°C

30

Ambient temperature(with daily average≤35°C)

°C

-5~+40

Storage temperature

°C

-25...+70

Installation

Terminal connection type



Cable/U-type busbar/Pin-type busbar

Terminal size top/bottom for cable

mm²

25

AWG

18-3

Terminal size top/bottom for busbar

mm²

25

AWG

18-3

Tightening torque

N*m

2.0

In-lbs.

22

Mounting



35mm DIN rail

Connection



From top and bottom

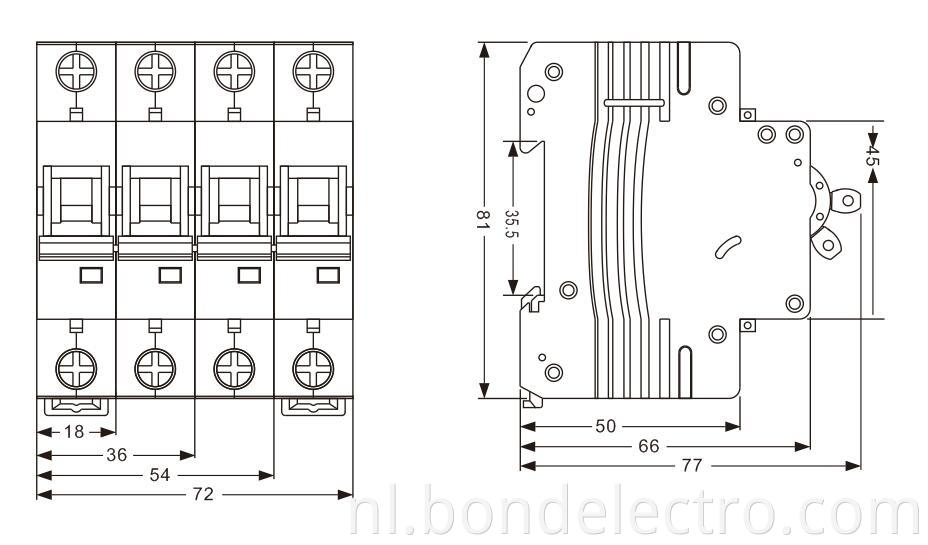

BKM1-63H 10KA Breaking Capacity MCB Dimension
